LED Solar Street Light | AE6 Model
As the first to market, we’ve engineered off-grid solar street lighting for the UK climate and market since 2011, now with over 15,000 solar lights installed up and down the UK.
Prolectric’s Street Lighting 3-PIR sensor is the only light, unique to the market, offering detection for a wider range of motion. Up to 20m detection with 15m in front and 12m to each side.
Prolectric Permanent Solar Street Lighting is Dark Sky approved, meaning our products are certified by a third-party objectively. Designs and projects produce minimal glare, reducing light trespass, and don’t pollute the night sky.
AE6 Solar LED Street Light
The AE6 Solar Street Light is our brightest and most powerful street light, providing outstanding performance even in the winter months. Since introducing the first solar-only permanent street lights, over 13 years ago, to the UK market, we have now installed tens of thousands of lights nationally, all engineered specifically for the UK. Providing year-round, permanent solar street lighting which is simple to install and requires no external electrical power.
With solar panels varying from 150W to 300W and a battery capability of up to 2,458Wh, this module is optimal for lighting large outdoor public areas. It is also possible to upgrade your setup to 2 lights and 2 panels to provide further output should it be required – that’s double the performance!
The light delivers sustained and reliable all-night power by integrating key electronic components. Efficiency is optimised and reflective solar energy is captured with double-sided monocrystalline PV units. Smooth and responsive dimming is enabled using a Pulse-Width Modulation (PWM) smart-controller that activates via the motion sensor built into the system. Our PIR system is a unique industry offering, providing a 3-PIR sensor for wider motion detection, giving up to 20m detection; 15m forwards and 12m either side.
Pre-programmed LED power outputs enable usage of smaller batteries and solar panels whilst continuing to provide sufficient light as required. A dual and innovative LiFePO4 lithium-ion battery system withstands repeated charging and discharging cycles. The world class LED chips ensure up to 15 years of crisp and bright illumination.
The lights can be installed on columns up to 12m. With our street light system being a split-type, we recommend our products are fixed at a static angle for compliance and wind-loading. In some instances, in Northern Scotland for example, a more acute angle may be required and we have engineered a bracket to enable this. Variable angle brackets are liable to not be compliant for wind loading and we suggest to avoid these.
This is a standalone solution made to setup-and-forget with a 5-year warranty. For a no obligation consult, contact on of our solution specialists.
Permanent Street Lighting Experts
With over 13 years of expertise, Prolectric is a trusted pioneer in manufacturing and installing permanent solar street lighting across the UK. Our innovative solutions illuminate hundreds of sites nationwide, with tens of thousands of lights specifically designed to meet the unique needs of the UK market. Rely on Prolectric for high-quality, reliable solar lighting that sets the standard in the industry. For a no obligation consult, contact on of our solution specialists.
Lighting Design Services
Our engineers understand all relevant lighting regulations and British standards. As such, we can not only advise on lighting layout, but we can fully analyse the lighting requirements for each site. Read more in our article on: Why lighting design is essential when procuring street lights?
Unique 3-PIR Sensor
Prolectric’s Street Lighting 3-PIR sensor is the only light, unique to the market, offering detection for a wider range of motion. Up to 20m detection with 15m in front and 12m to each side.
5-Year Warranty
Cover on all parts of the lights and solar panel.
Solar Panel: 5 Year Limited Warranty on Construction
Controller: 5 Year Limited Warranty
Battery: 5 Year Limited Warranty
Solar Panel Power Output: Limited Power Output Warranty of 20 Year (90% / 80%)
10 Year Output Warranty at 90% / 20 Year Output Warranty at 80%
Street Lighting Compliance
Our street lights are fixed at a static angle for wind-loading and compliance. In some instances, like in Northern Scotland, a more acute angle may be required and we have engineered a bracket to enable this. Variable angle brackets are liable to not be compliant for wind-loading, we therefore recommend not using them when possible.
Cost Savings
- Quick installation and delivery service
- No ongoing energy costs
- Low maintenance
- No mains power
- Safer environments
Key Features
- Monocrystalline solar module with high capacity
- Smart controller for programming
- 3-PIR sensor for wider motion detection
- Advanced LED lighting system
- Innovative lithium-ion battery system
AE6 Applications

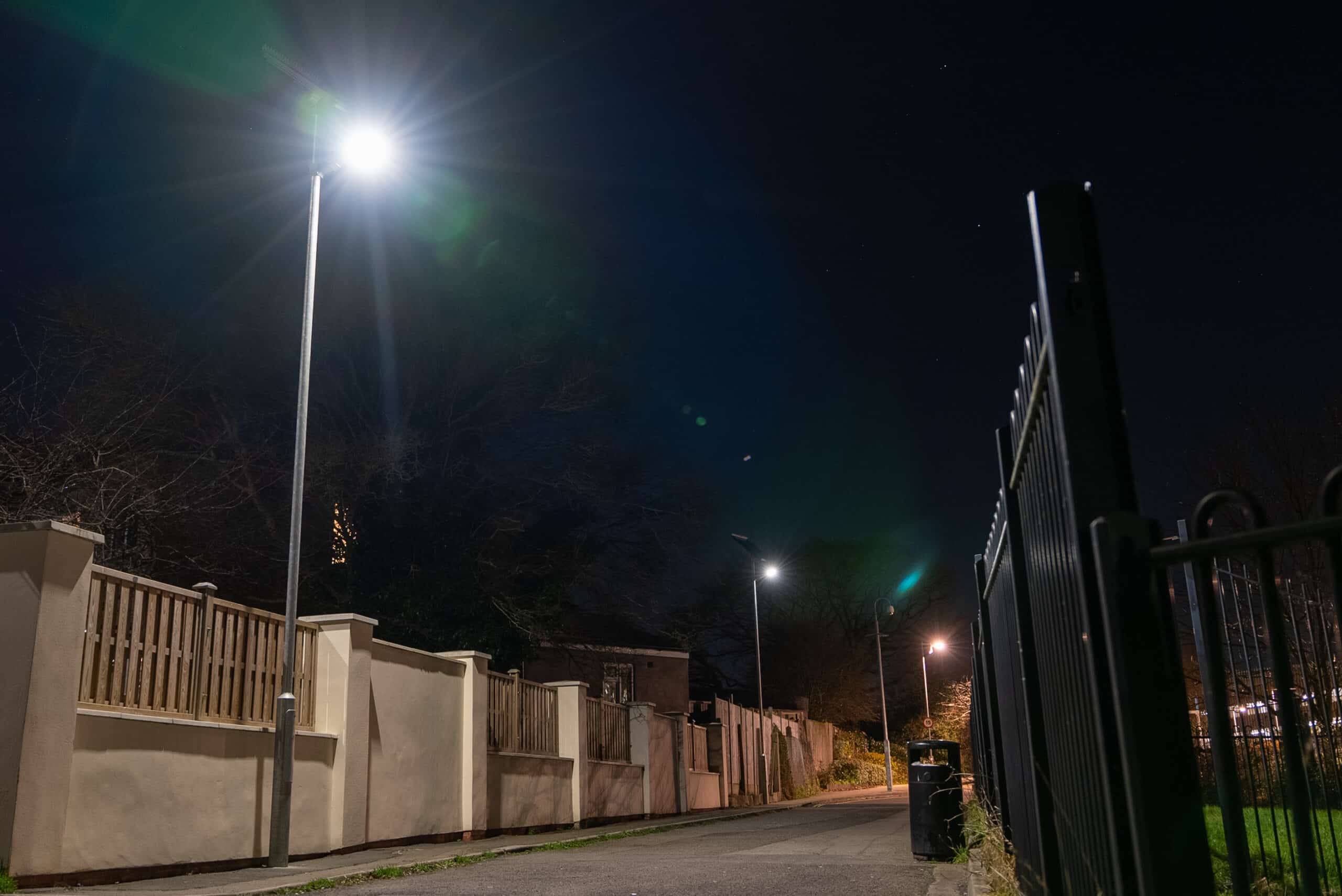

- Roadways and urban streets

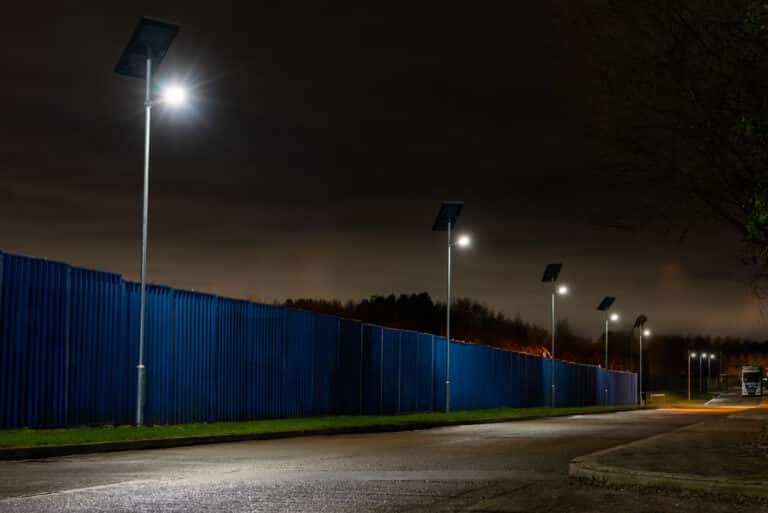

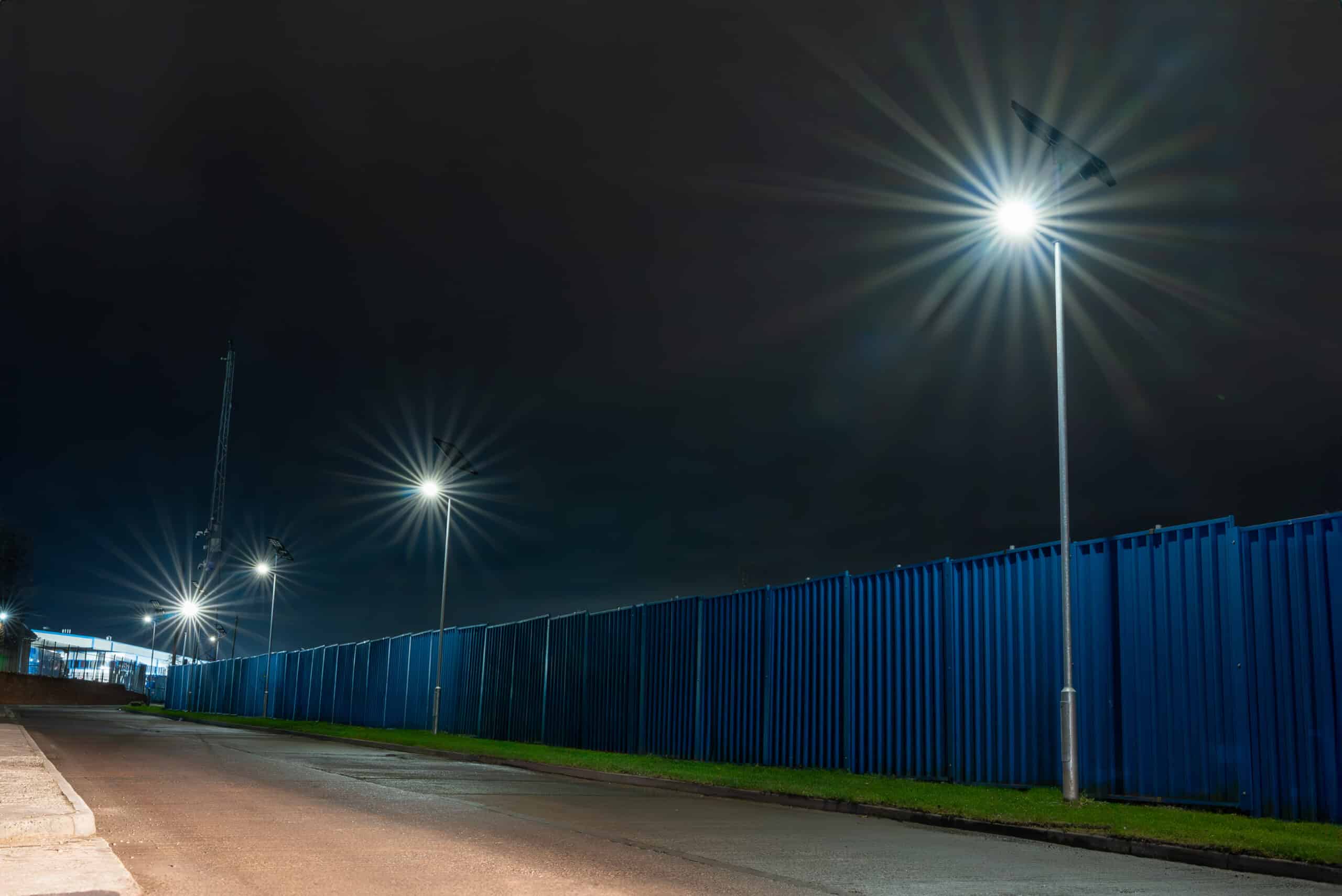

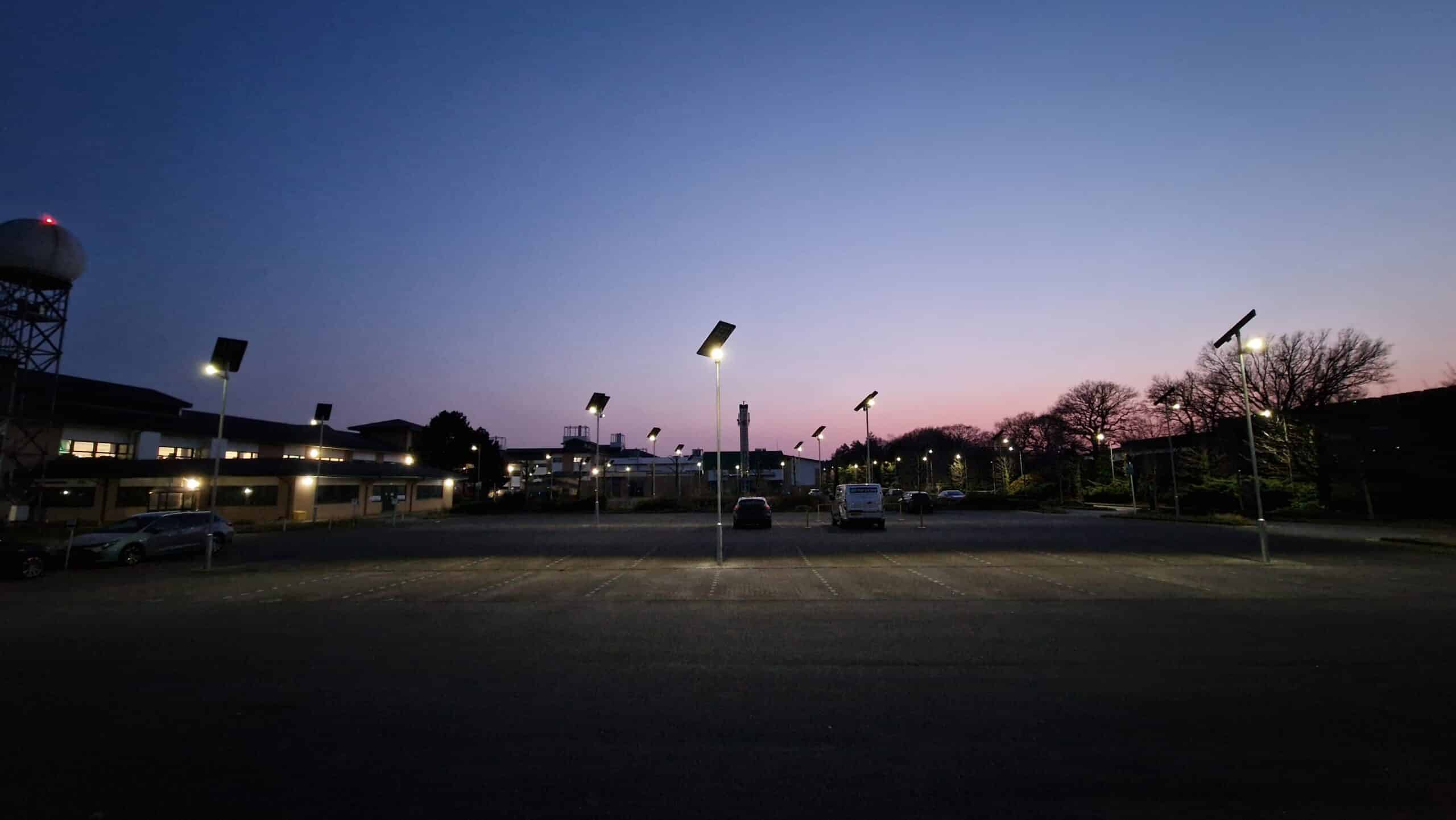

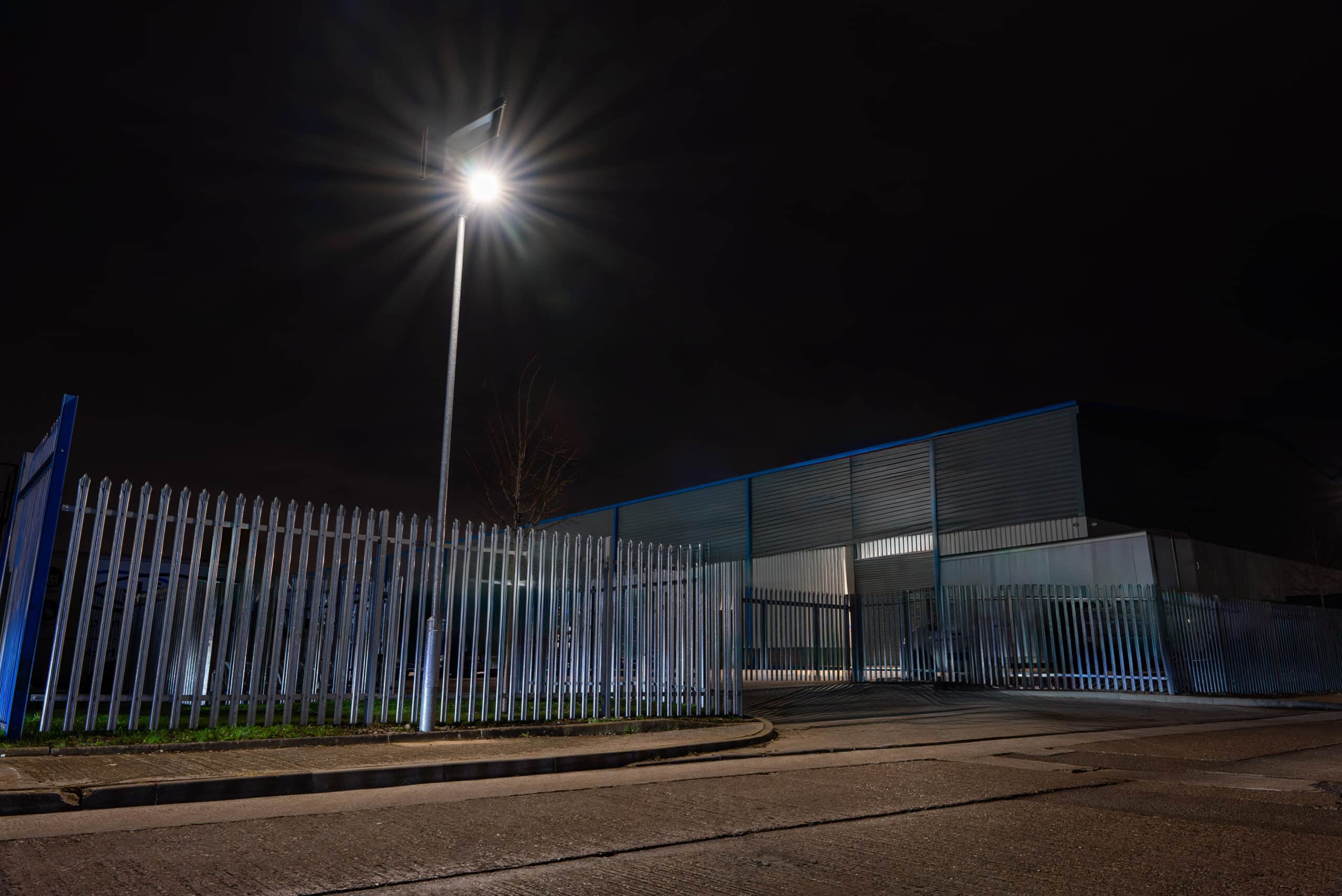

- Business parks and commercial perimeters

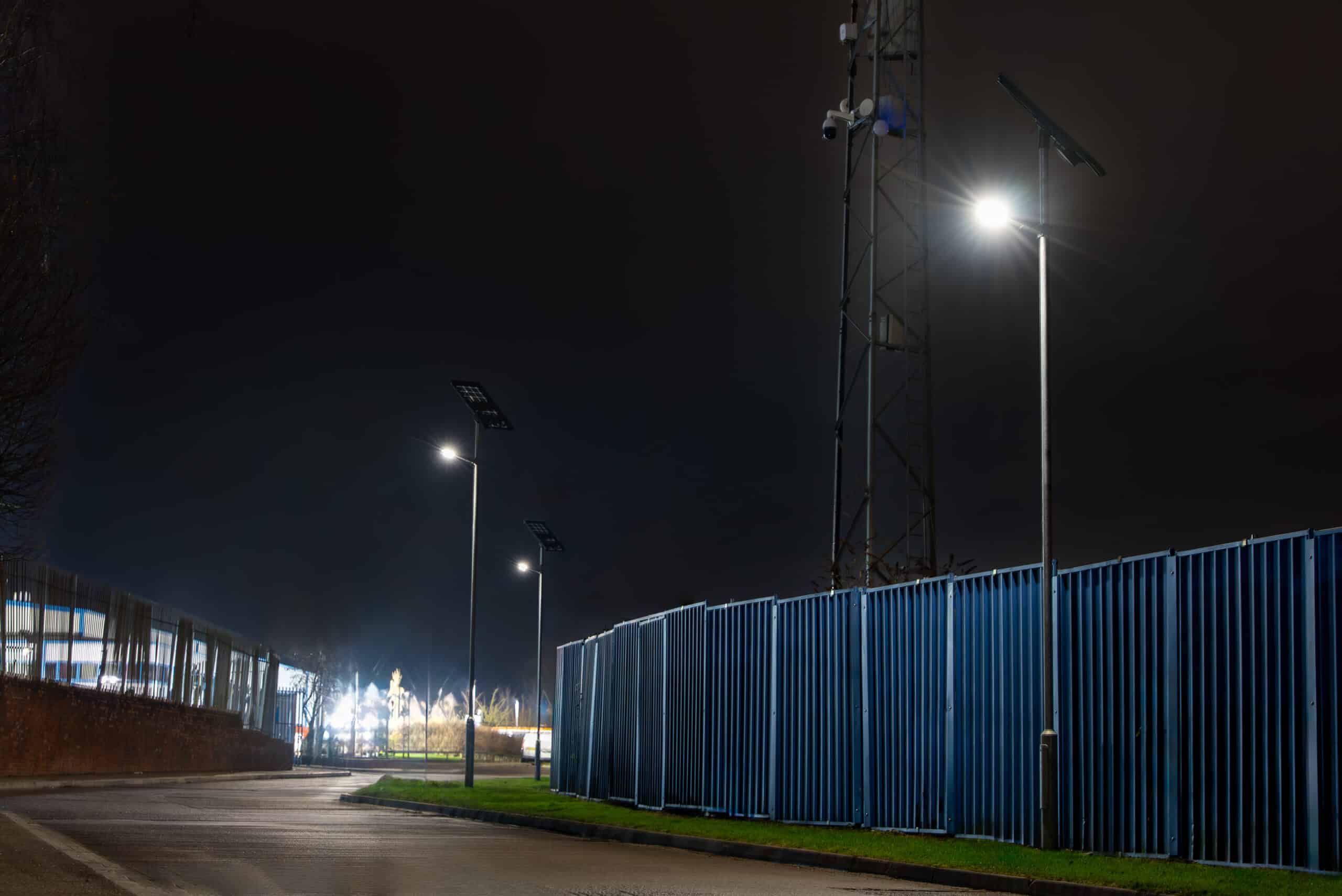

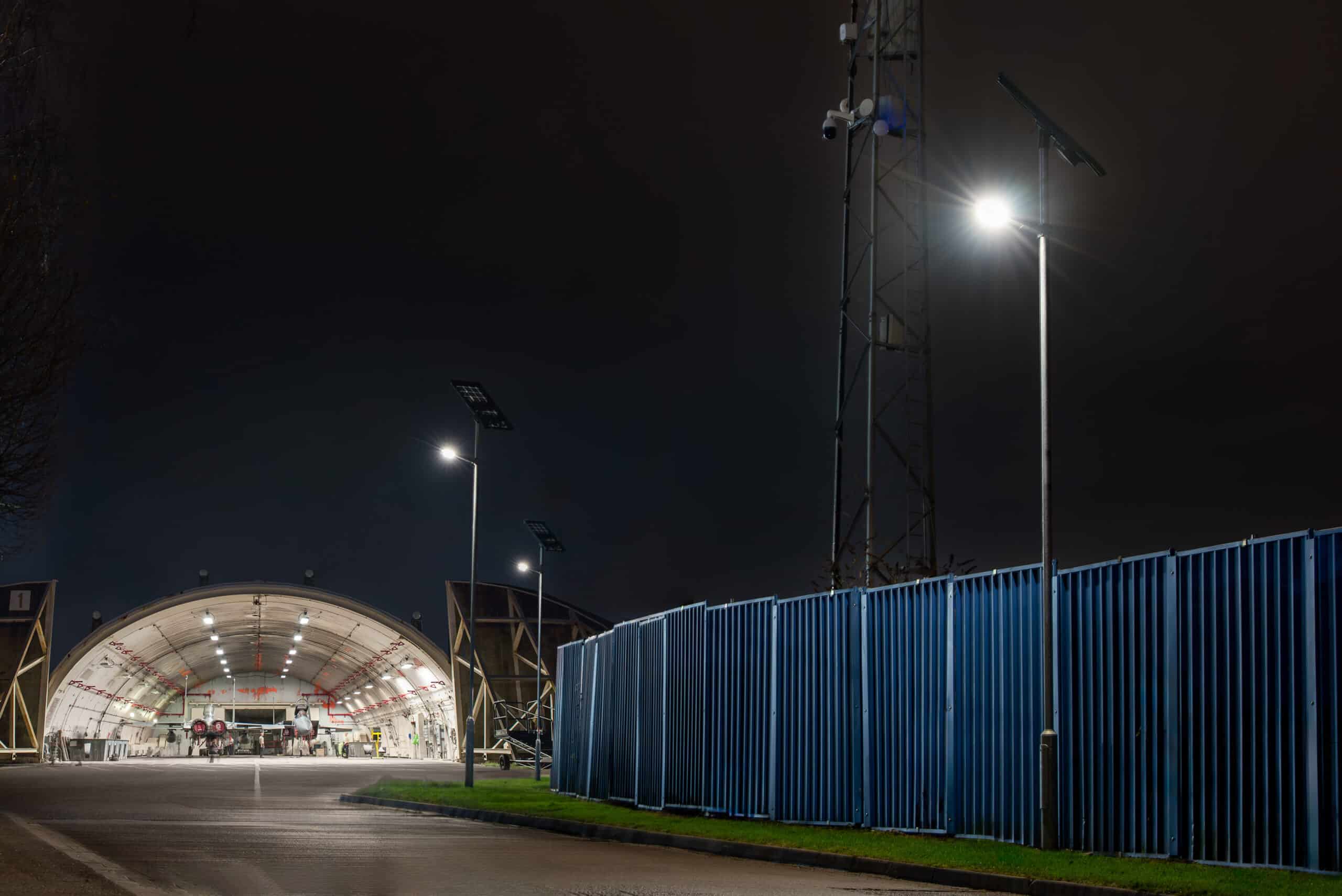

- Security and entrance lighting
- Construction and industrial sites
- Rural and remote area lighting

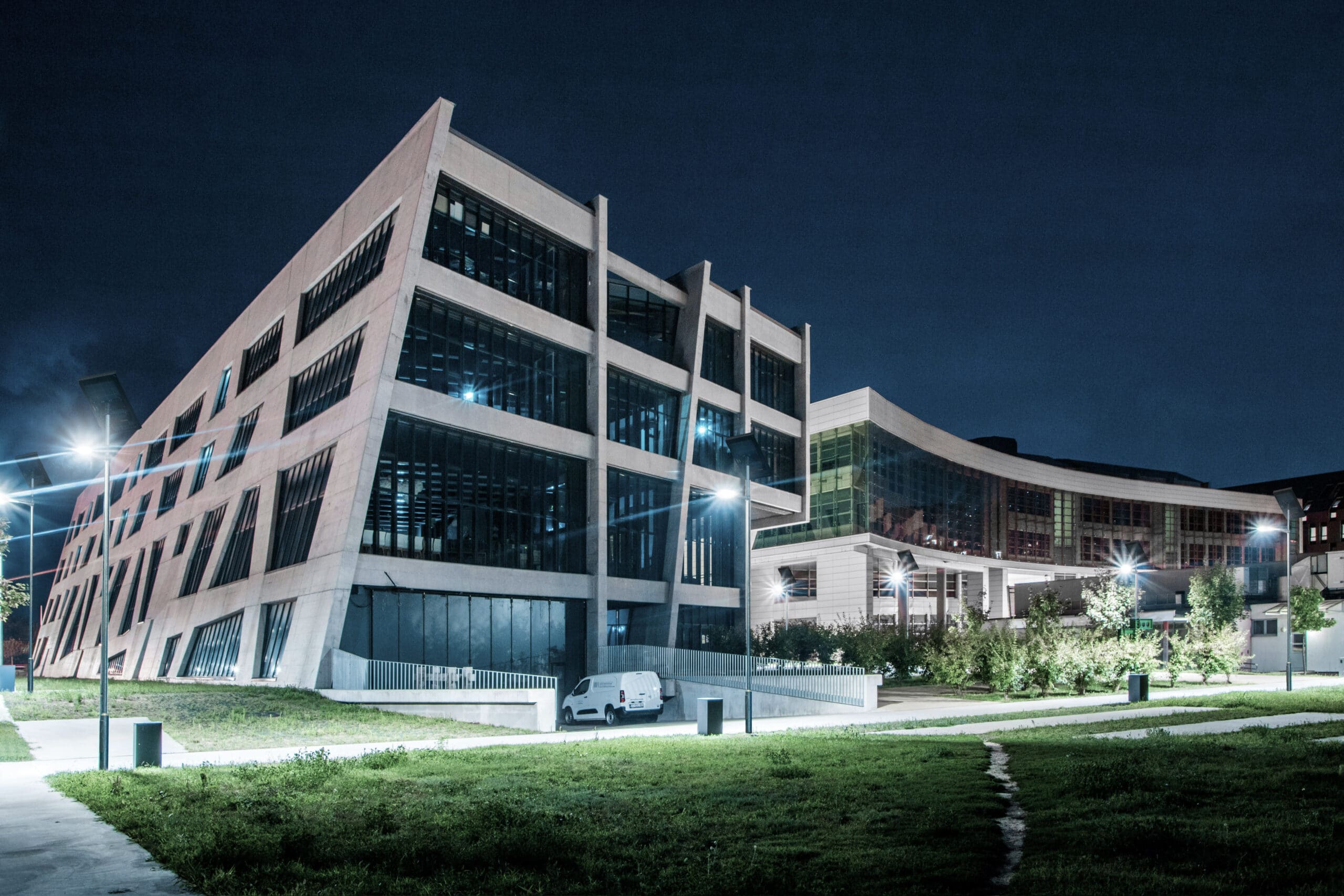

- Airport, ports and recreational areas
Dark Sky Approved
Prolectric Permanent Solar Street Lighting is Dark Sky approved, meaning our products are certified by a third-party objectively, and our designs and completed projects for minimising glare, reducing light trespass, and not polluting the night sky.
Lighting System5W to 80W LED Light |
Light CoverageUp to 1,726 sqm *Download Product Specification Sheet for more detail. |
Lux LevelsAdjustable lights to suit BS5489 British Standards |
LumensUp to 14,800 |
Panels150W, 200W or 300W solar panel |
BatteryLiFePO4 lithium-ion battery technology |
Battery Capacity150W: 64Ah (820Wh) *An additional battery can be added to give 2,458 Wh total |
5-Year WarrantyCover on all parts of the lights and solar panel
|
Column4-12m high Prolectric Services Limited advises the purchaser of this product to ensure it or a suitably qualified engineer has considered all applicable industry standards, wind loadings, suitability of the terrain where the customer intends to use this product and foundation requirements before selecting, installing and using this product. |
The AE6 is a high-quality, year round, solar powered LED system and provides permanent lighting without the need for external electrical power.
The AE6 can be installed easily, quickly and economically. There is no need to install cable trunking or dig trenches. This means that installation costs can be halved compared to conventional mains power alternatives. We offer installation services for our solar street lamps, as well as supply columns, as specified.
The only light offering detection for a wider range of motion. Our specially-developed smart light controller and Passive Infra Red (PIR) sensor works to ensure the solar LED light lasts from dusk until dawn, even on the darkest days and are proven to operate throughout the UK winter, as tested in Scotland!
Because they provide standalone off-grid lighting without mains power, our permanent solar lights can contribute significantly to your organisation’s carbon reduction targets. As uptake of the technology continues to grow rapidly, our lighting can make a significant contribution to your sustainability goals.
Our specialist knowledge of solar lighting design and deployment helps us advise on lighting layout and report on the lux levels across your site to ensure your lights specified meet British Lighting standards.
Column specification in line with the applicable standards must be considered when selecting this product. We take great care to work with our customers to ensure the properties of their solar street lights and final selection of column for installation is carried out to comply with the environment in which it is utilised.
Downloads
Download Full Product Specification Sheet.
