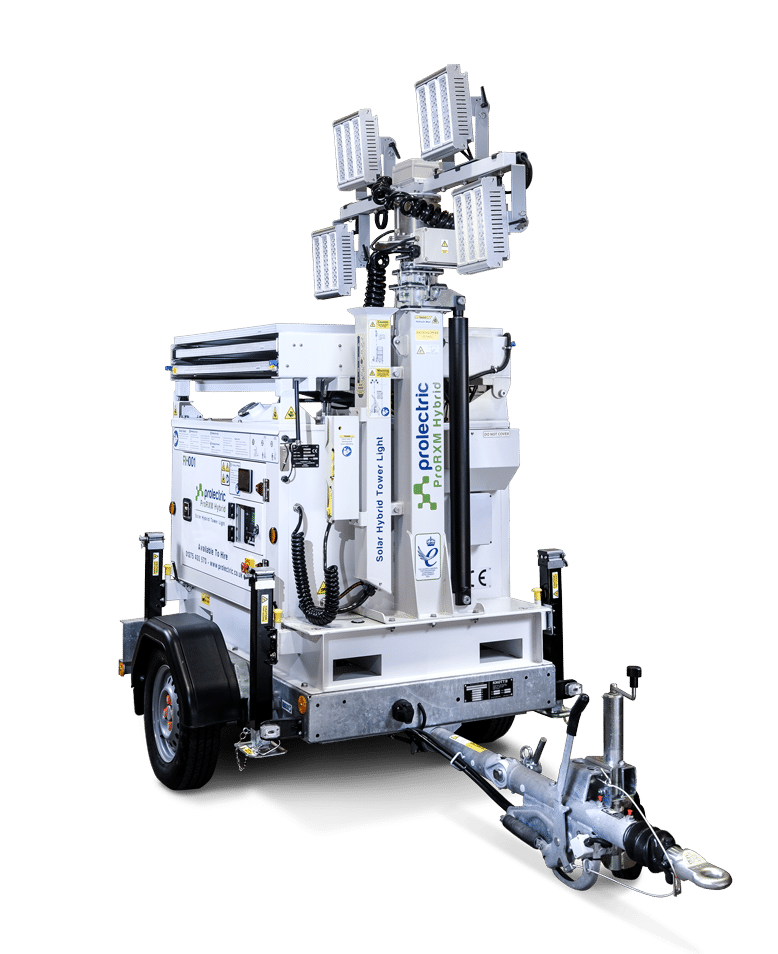

The ProRXM Hybrid is a space efficient solar hybrid lighting tower designed specifically for Rail and Highway works, fitting in a trackside cesses or tight roadside spaces with the same footprint as a VT1.
In response to market demand and in the pursuit of achieving new engineering standards to improve lighting efficiency, Prolectric has launched the ProRXM Hybrid. Versatile by design, it’s ideal for walkway lighting, where it can be fully powered from three 270W solar panels with 11.36kW of usable battery bank storage. Alternatively, the lights can be turned up for task lighting, and its autonomous and efficient 2.8kW DC engine, which uses just 0.5 litres per hour, can provide backup power.
Various industry applications include:
Lighting System4x 60W-180W LED floodlights |
Light CoverageUp to 16,993 sqm *Download Product Specification Sheet for more detail. |
Lux LevelsAdjustable lights to suit BS5489 British Standards |
LumensUp to 118,800 |
Panels3x 270W slidable solar panels with hydraulic arm |
Battery4x 25.6V 111Ah lithium-ion batteries Heavy-duty, deep-cycle battery technology |
Mast6.5m, 360° pan motor rotatable hydraulic and telescopic mast |
MountingPortable trailer mounted with retractable towbar |
Dimensions3172x1574x2720mm (Stowed) 2562x2119x6540mm (Deployed) |
Weight1300kg |
Generator Set3.5kVA (1PH), DC 2.8kW engine 150 litre fuel tank (300 hrs run-time at 0.5 litres per hour) |
The ProRXM Hybrid matches the footprint of a standard VT1 diesel generator. To avoid damage, the solar panels fold away neatly on the top of the unit and are covered when not in use. Once extended, a hydraulic mechanism tilts the panels diagonally to minimise space, while capturing maximum sunlight.
The Prolectric ProRXM Hybrid operates reliably all year round, even in challenging winter conditions. The trailer mounted battery bank has sufficient capacity to ensure that even on winter days with 16 hours of darkness, the unit operates consistently and reliably.
Our Smart Remote Portal allows you to manage your ProRXM Hybrid from anywhere, anytime using the portals’ powerful, autonomous, remote control functionality.
As a solar 1st and diesel 2nd tower light you save costs on fuel and refuelling while simultaneously reducing carbon emissions and fuel usage, avoiding spills. Maintenance is reduced as the generator run-time is remarkably less.
The ProRXM Hybrid is a portable trailer mounted tower light with a retractable towbar and our Automatic Mast Safety System (PAMS) is a fail-safe system built-in to avoid danger and personnel injury.

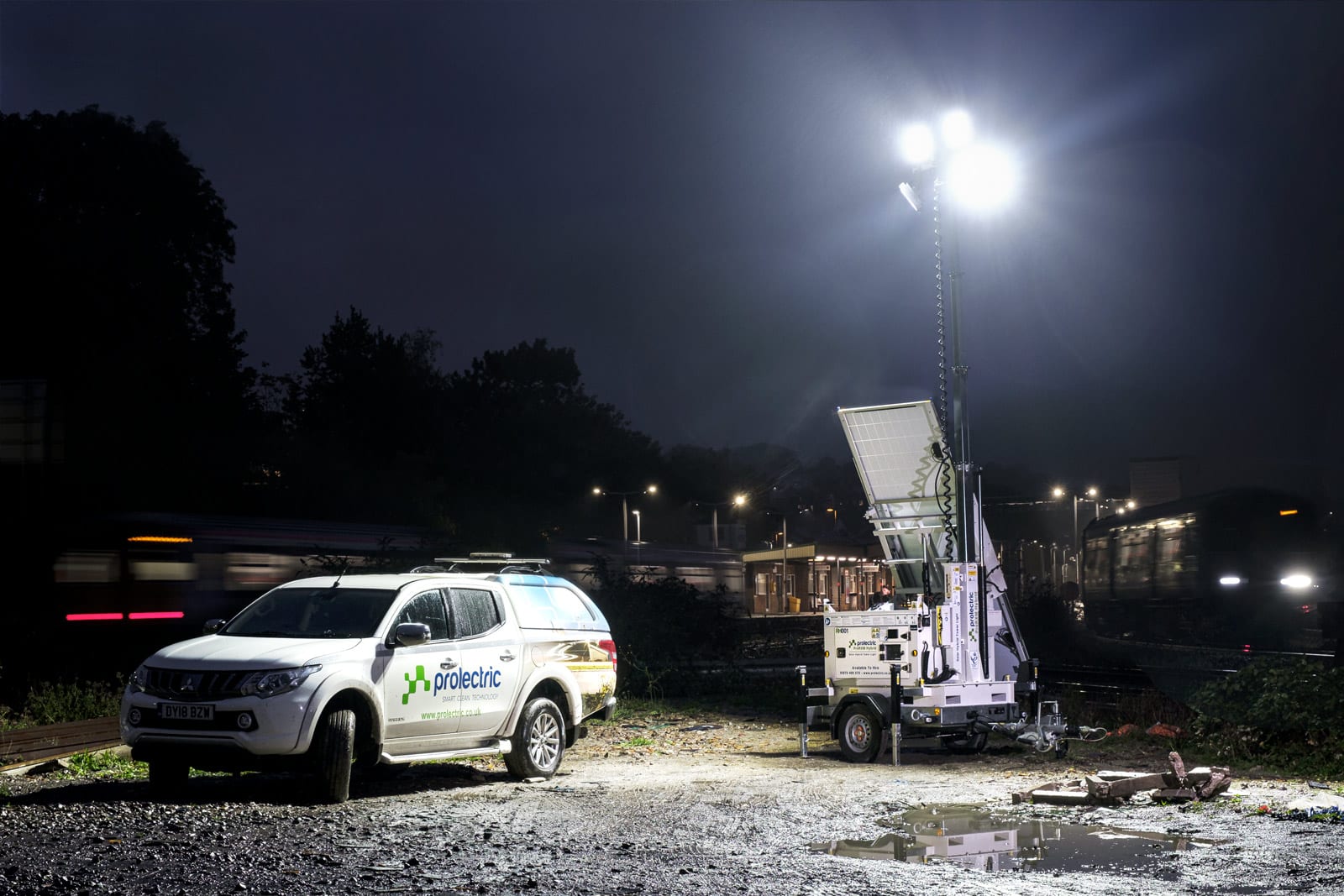

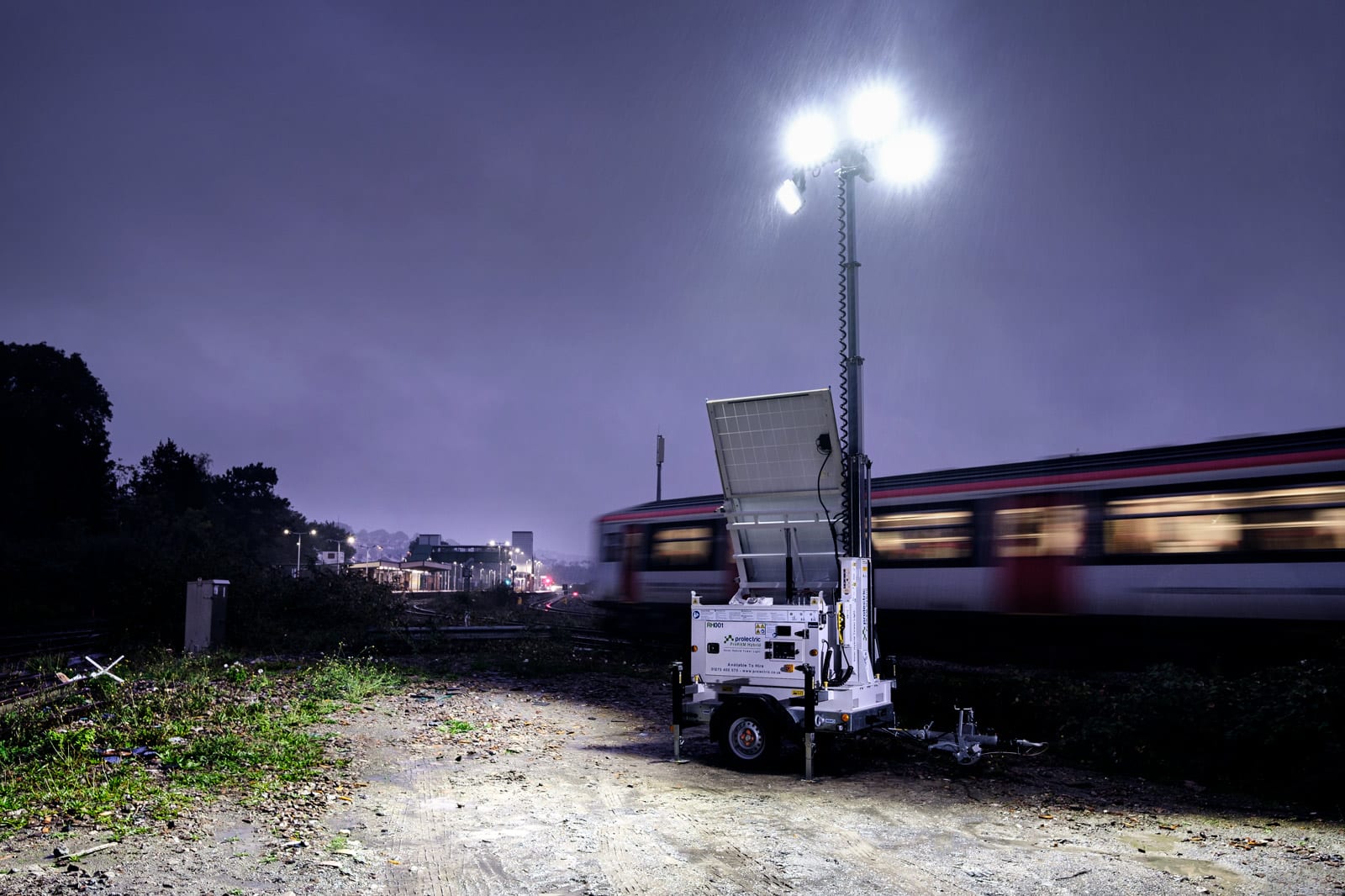

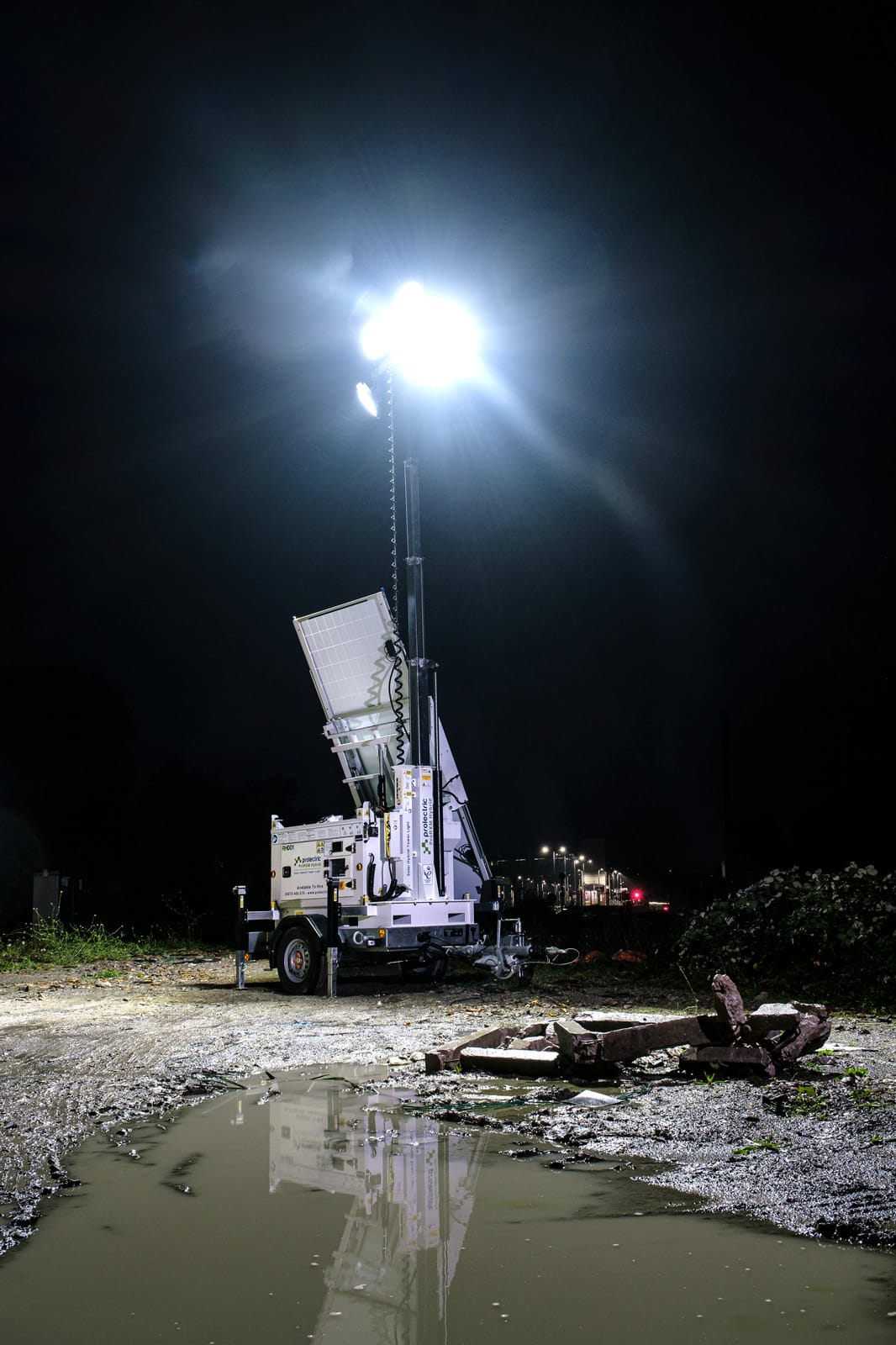

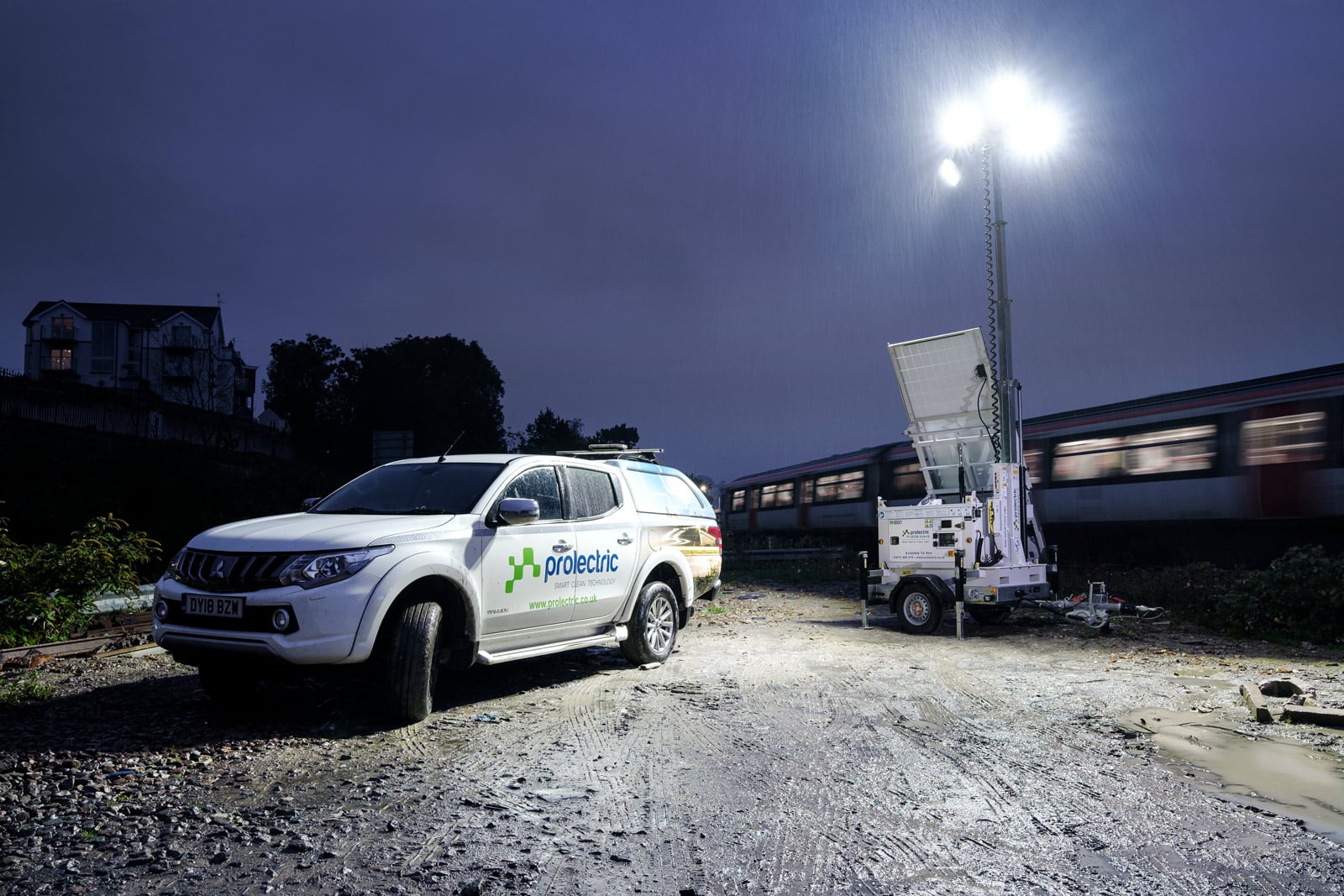

The tower light is perfect for urban locations and night projects, when the generator is not boost charging the unit. Under normal conditions the generator may only be required occasionally for winter months.
Download Full Product Specification Sheet.
